- CD1110扭矩傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/19
Applications: Low range dynamic applications, Process control equipment, Test and Measurement, Robotics and Effectors, Laboratory and Research
Industries: General Industry

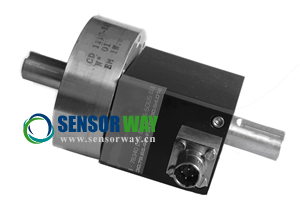

Description: The CD1110 series of dynamic torque sensors have extremely low operating ranges protected by mechanical stops permitting an overload of 10 times the F.S. measurement range. The rugged design provides accurate bidirectional torque measurements of rotating components up to 2000 rpm. Optionally the CD1110 can receive an on-board amplifier for high level voltage output. Signal amplification is accomplished before transmission via the slip ring assembly, thus eliminating the noise generated by the contacts. It is also possible to eliminate the contact residual drag torque by placing the transducer sensing element directly in contact with the torque to be measured. With many years of experience as a designer and manufacturer of sensors, Measurement Specialties often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.
Features:
Ranges from ±0.05 to ±2 Nm (±0.04 to ±1.6 Lbf-ft)
Integrated Mechanical Stops
Keyed Shaft Mechanical Connection
High Level Output Model with Integrated Amplifier
典型應用: 低量程動態應用，過程控制，測試測量，機器人，實驗室和研究
行業: 工業控制
產品描述:
CD1110系列動態扭矩傳感器主要用于超低扭矩測量。產品帶有機械限位裝置，最大允許10倍滿量程過載。堅固的結構設計允許傳感器在2000rpm的轉速下提供精確的雙向扭矩測量。放大輸出型號可選，放大處理在通過滑環傳輸信號之前完成，因而消除了由于接觸所產生的噪聲�？蛻暨�可定制將傳感器元件直接與被測扭矩接觸的型號，用來消除測量扭矩時產生的接觸殘留阻力矩。作為擁有多年經驗的傳感器設計和制造商，MEAS常常與客戶合作，按要求定制適合特殊用途和測試環境的傳感器。同時，我們也根據客戶需要提供成套系統。配套元件（傳感器，電源，放大器和數顯系統）配置統一，經過校正，可供客戶立即使用。
特點:
量程：±0.05Nm ~ ±2Nm（±0.04Lbf-ft ~ ±1.6Lbf-ft）
機械限位
插銷式機械連接
可選放大輸出
CD1110系列動態扭矩傳感器更多技術參數及規格書下載請瀏覽：http://plt-connector.com.cn/sensors/558.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
